Dispensers & Systems

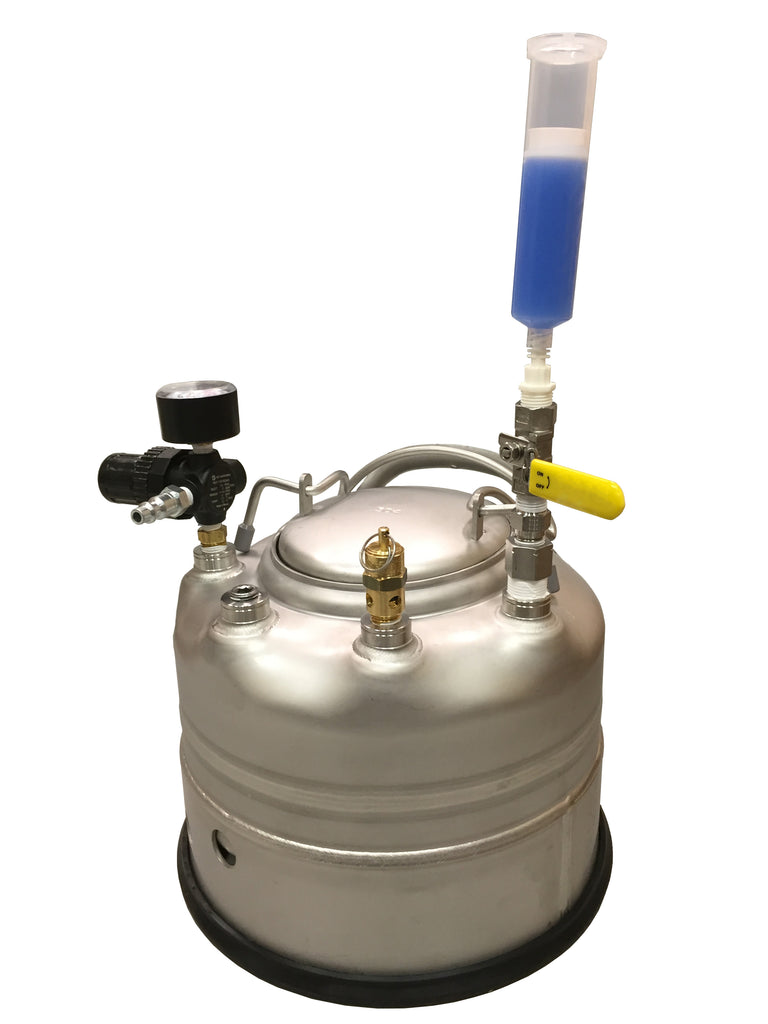

Ball Valve Syringe Loading System

$ 1,240.40

The Ball Valve Syringe Loading System is designed for efficient and precise filling of syringes and cartridges with bulk flowable materials. This system includes a 1-gallon wide-mouth 304 stainless steel pressure vessel, equipped with a 100 psi regulator, gauge, and stainless steel ball valve.

Simply pour your bulk material into the tank, and use the ball lever to manually fill each syringe or cartridge with accuracy and ease. The system comes complete with all the necessary fittings to set up a fully functional filling station, making it an ideal choice for industrial applications where efficiency and precision are critical.

Key Features: - 1-Gallon Pressure Vessel: Wide-mouth opening for easy filling. - 304 Stainless Steel Construction: Durable and corrosion-resistant. - 100 psi Regulator and Gauge: For controlled pressure management. - Stainless Steel Ball Valve: Ensures smooth and precise filling. - Complete Setup: Includes all necessary fittings for a filling station.

- SKU: JGD1G-BV-SLS

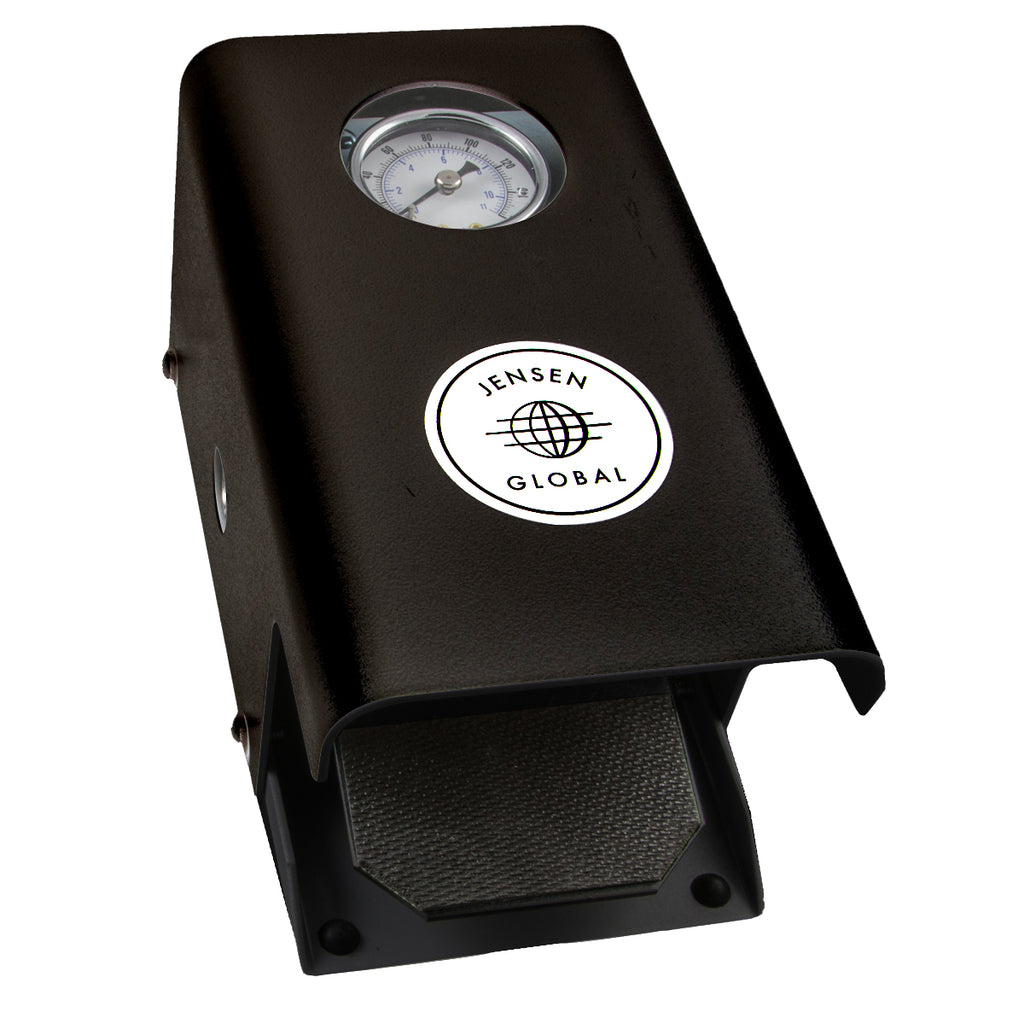

Foot Valve Syringe Dispenser

$ 344.00

A purely pneumatic valve pedal that includes a built-in regulator and gauge to control the flow of material, and a simple step-to-activate design built inside a protective housing. The back of the unit has a 1/4" female thread with a standard male quick connect included. The foot pedal has a syringe adapter inlet port built-in to fit standard 1/4" OD tubing plus a reducer adapter to accept 5/32" OD tubing.

The JGDFV25V is offered with a built-in vacuum venturi regulator which allows pullback of material into the dispensing tip, reducing dripping and stringing of the material. It has all the same features of the JGDFV25 plus the vacuum feature.

For features and spec information please click here: BROCHURE.

To view the Foot Valve Syringe Dispenser manual please click here: DIRECTIONS.

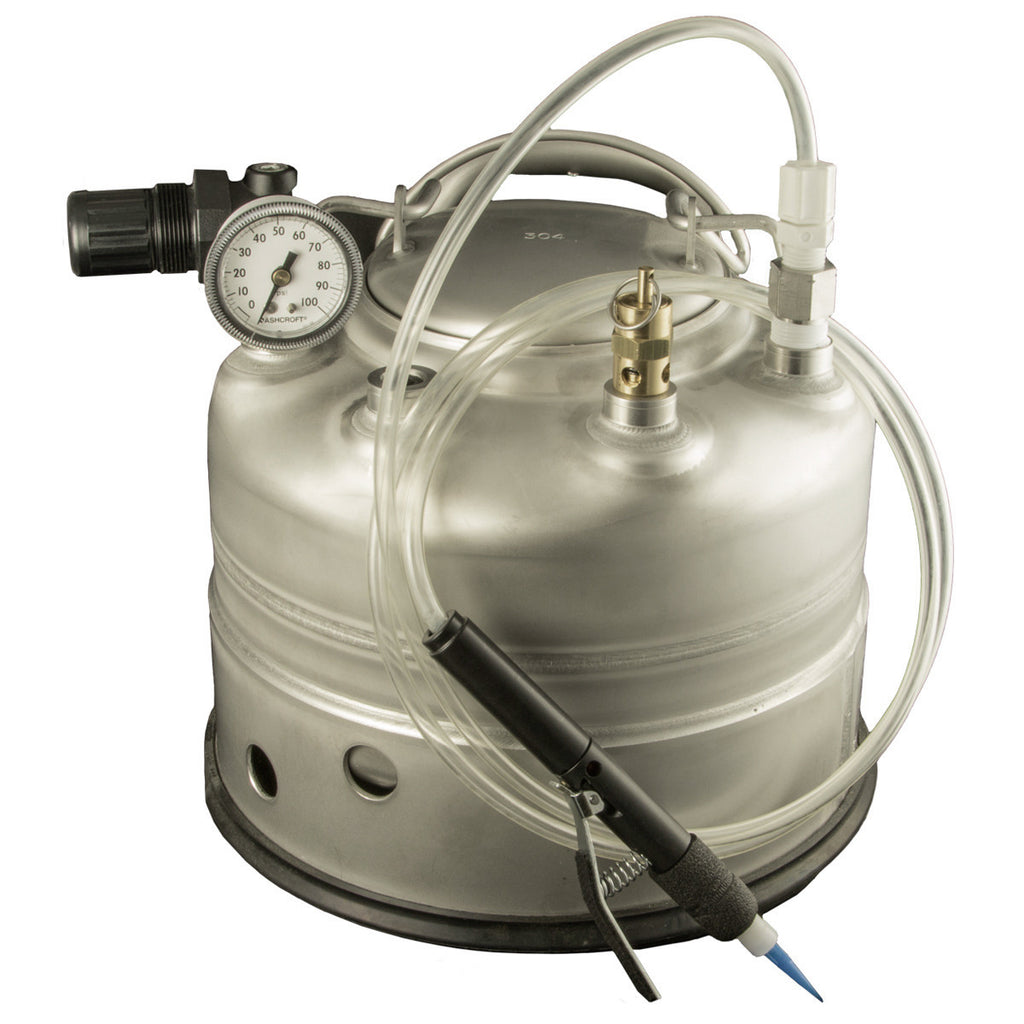

Solder Mask System

$ 1,244.00

This system is designed to dispense solder mask (water soluble or peel-able mask), and can be configured for 1, 2, 3 or 4 operators. A simple operating pinch tube wand allows for manual dispensing of solder mask through any desired dispensing tip. The 1 gallon pressure tank has a large opening to allow easy pouring of solder mask from a 1 gallon or larger container and easy access for cleaning. This system is purely pneumatic, easy to set up and operate.

For system specs and pinch wand tube replace information, please click HERE.

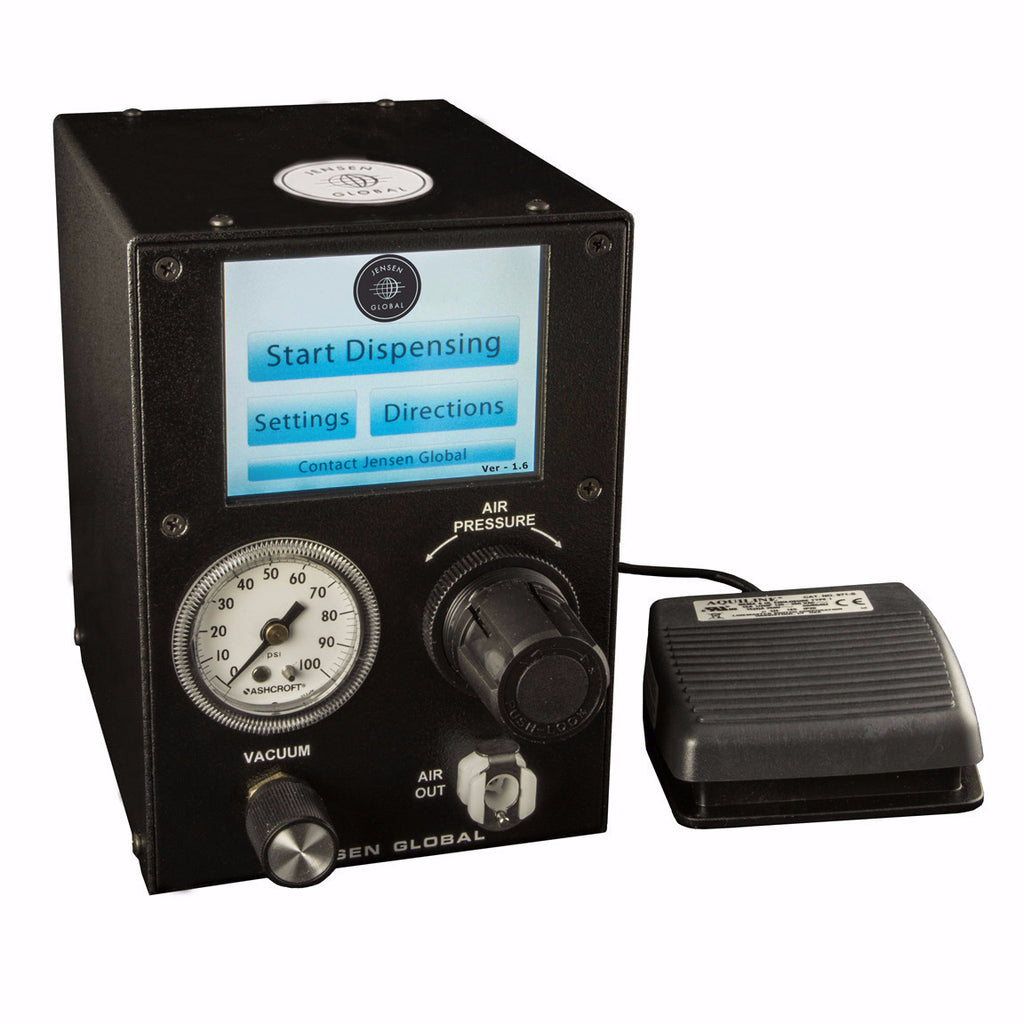

Touchscreen Programmable Shot Meter

$ 870.00

Jensen Global’s Touchscreen Digital Programmable Shot Meter is designed to deliver precise and reproducible deposits of a wide range of materials, from thin fluids to viscous substances. Whether you are working with solder pastes, masks, adhesives, epoxies, RTVs, silicones, cyanoacrylates, paints, inks, oils, lubricants, or solvents, this advanced dispenser ensures consistent performance.

Ideal for use with both pre-filled syringes and empty syringes loaded with material, the touchscreen interface offers intuitive control over dispensing parameters, enhancing accuracy and efficiency in your operations.

Included in the Package: - Foot switch - Power supply - Air syringe adapters (3, 5, 10, 30/50 cc) - Air syringe barrels with stoppers (3, 5, 10, & 30 cc) - Syringe stand with material catch - Small variety pack of needles

For added flexibility, finger switches can be used as an alternative to the foot switch, allowing for customized control based on user preference.

For features and spec information please click here: BROCHURE.

To view the JGD500T manual please click here: DIRECTIONS.

Watch the Video: For a detailed overview and demonstration of the Touchscreen Programmable Shot Meter in action, watch the video below.

Touchscreen Programmable Shot Meter - BIO

$ 1,182.00

This unit for BIO is a modified dispenser that comes with;

- Special software modified for Manual Start Stop- one mode only

- 0-15 psi regulator

- 0-15 psi gauge with 0.5 PSI increments

- 1/8npt female bulkhead fitting on front of unit for Air Out

- 1/8npt male thread to push to connect (6mm) with 6 ft of 6mm od tubing

- No vacuum venturi

- 6 ea 3cc modified syringe adapters with 6 ft special soft PVC tubing per adapter

Manifold:

- Special Black 6 station manifold, with 6 flow control valves and hex plug

- 1/4 to 1/8 npt reducing adapter brass

- 1/4 npt connector adapter hex- 1 7/16 long SS

Jensen Global’s touchscreen digital fluid dispenser allows for reproducible deposits of a wide range of thin or viscous materials such as solder pastes, masks, adhesives, epoxies, RTV’s, silicones, cyanoacrylates, paints, inks, oils, lubricants, solvents and more. It is excellent for use with pre-filled syringes of material or when loading empty syringes.

Included: foot switch, power supply (no syringe adapters or syringes included).  Finger switches can be used as an alternative actuator to the foot switch.

For features and spec information please click HERE.

JGD500T-BIO

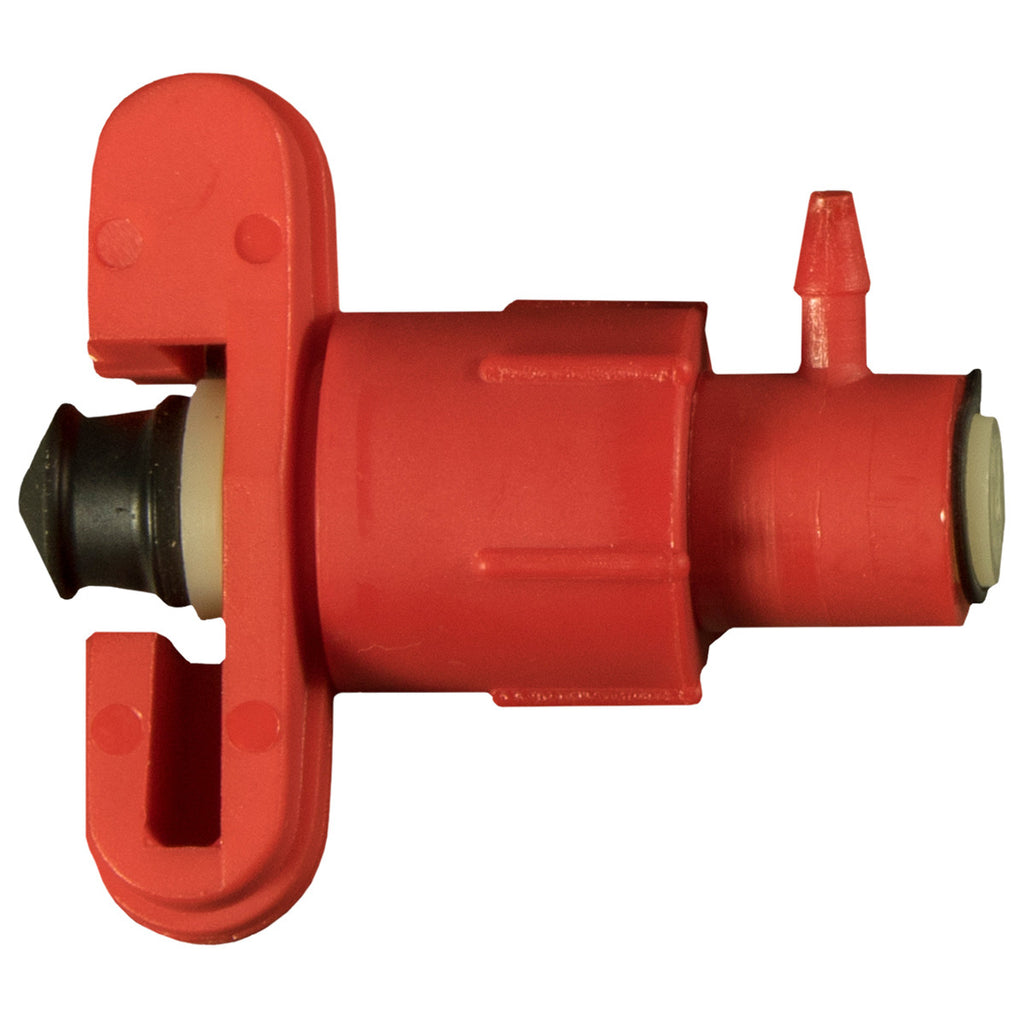

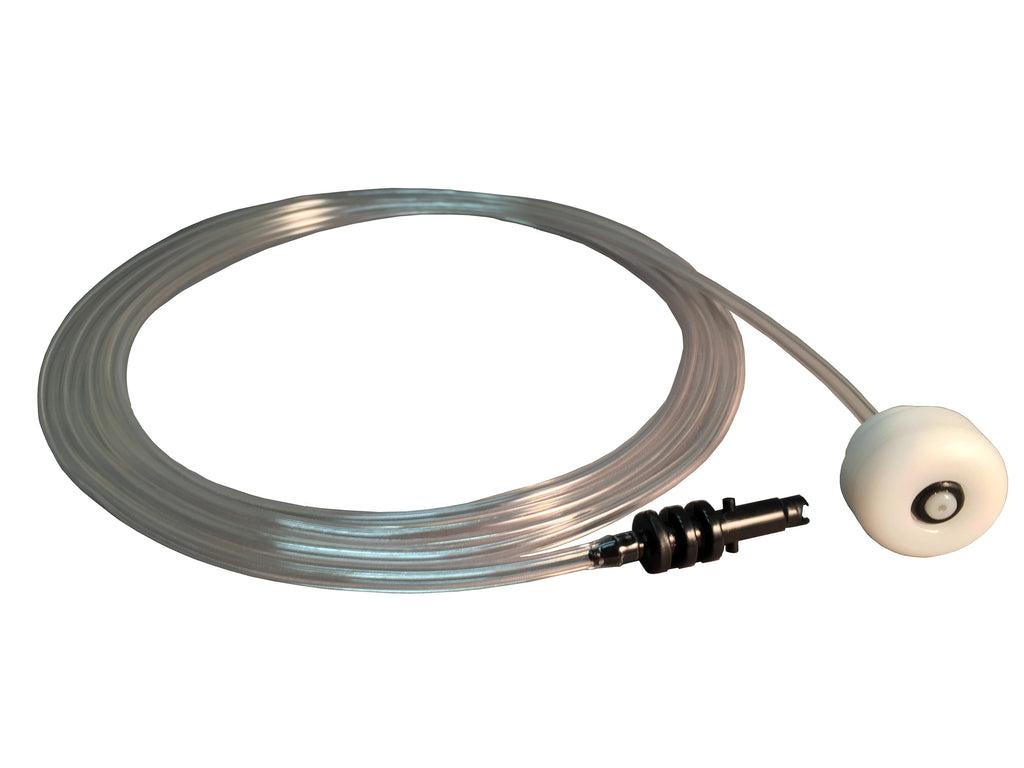

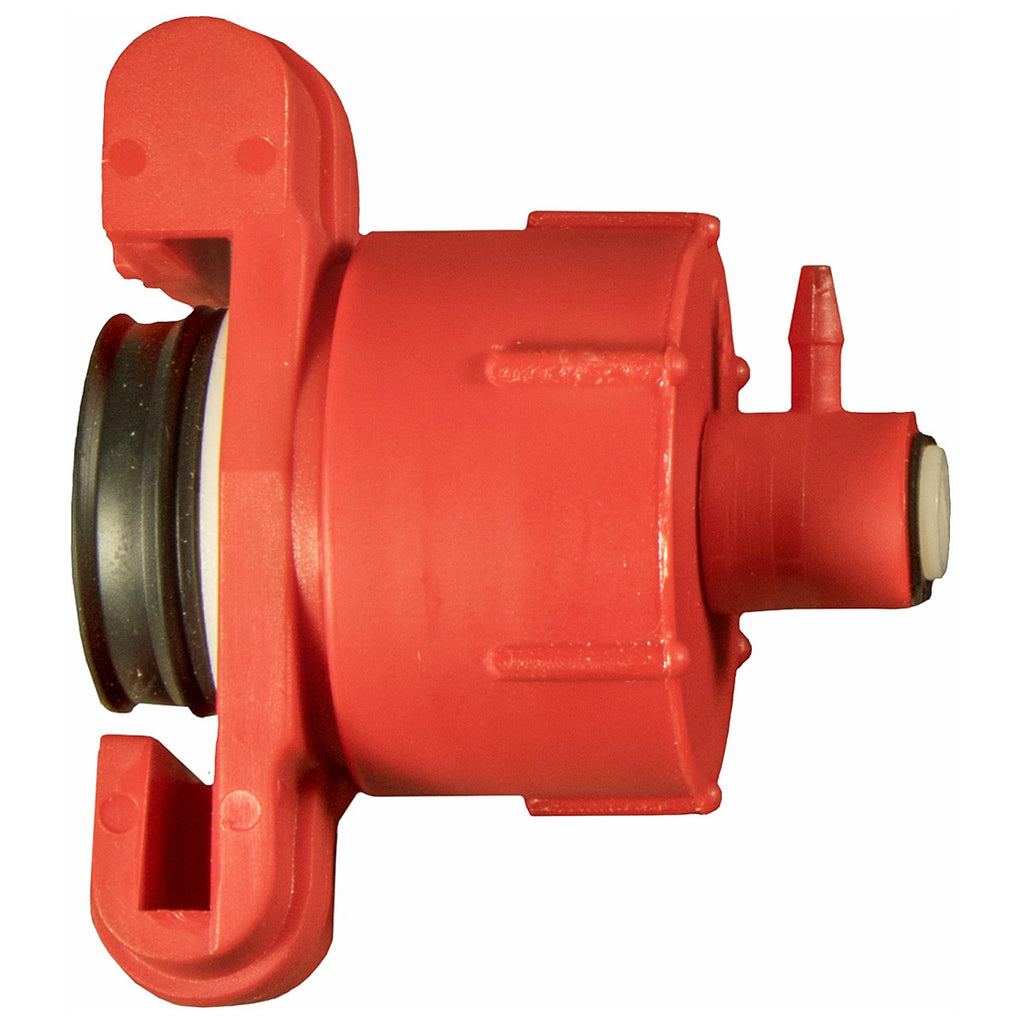

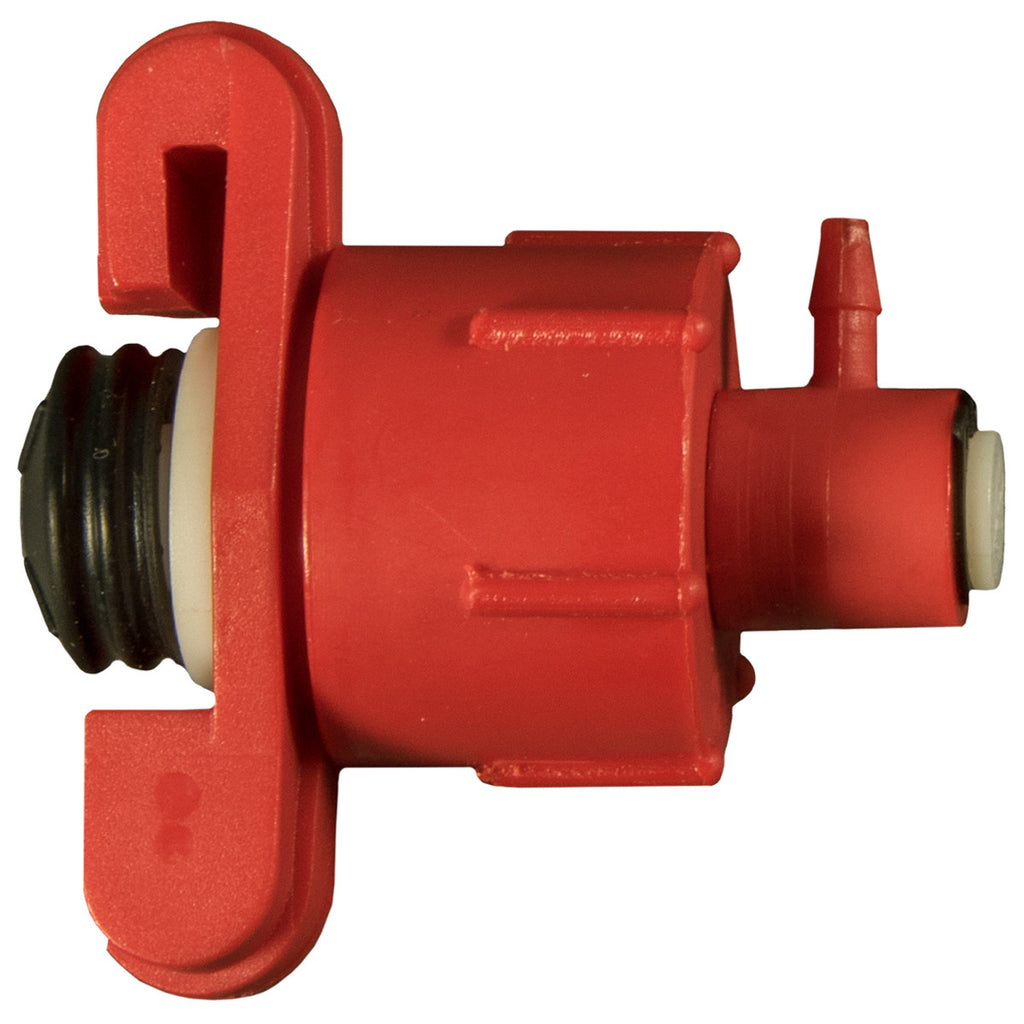

Universal Syringe Adapter

$ 51.20

Universal adapters are designed to accept a variety of air syringes and use a locking gasket mechanism to provide a tight seal. Although some pictures show the adapter heads only, each adapter comes with 6 feet of 5/32" tubing and your choice of either a black barb fitting (fits most dispensers) or a white QC fitting which fits our JGD500T, JGD400S, JGD350S, JGD150S, and JGD150STS dispensing controllers.

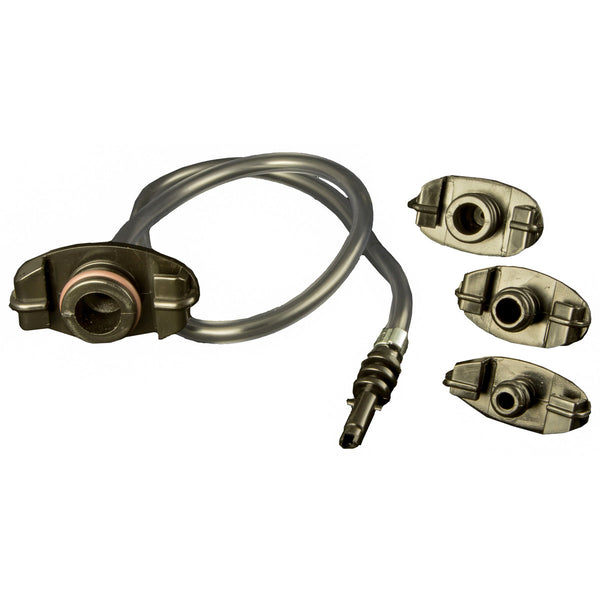

X-Series Syringe Adapter

$ 29.80

X-Series black syringe adapters are specifically designed with an O-ring seal to fit all Jensen Global air syringes. It uses a 1/4” air line, secured with a clamp. Our X-Series syringe adapters are available with either a black barb fitting (fits most dispensers) or a white QC fitting which fits our JGD500T, JGD400S, JGD350S, JGD150S, and JGD150STS dispensing controllers.

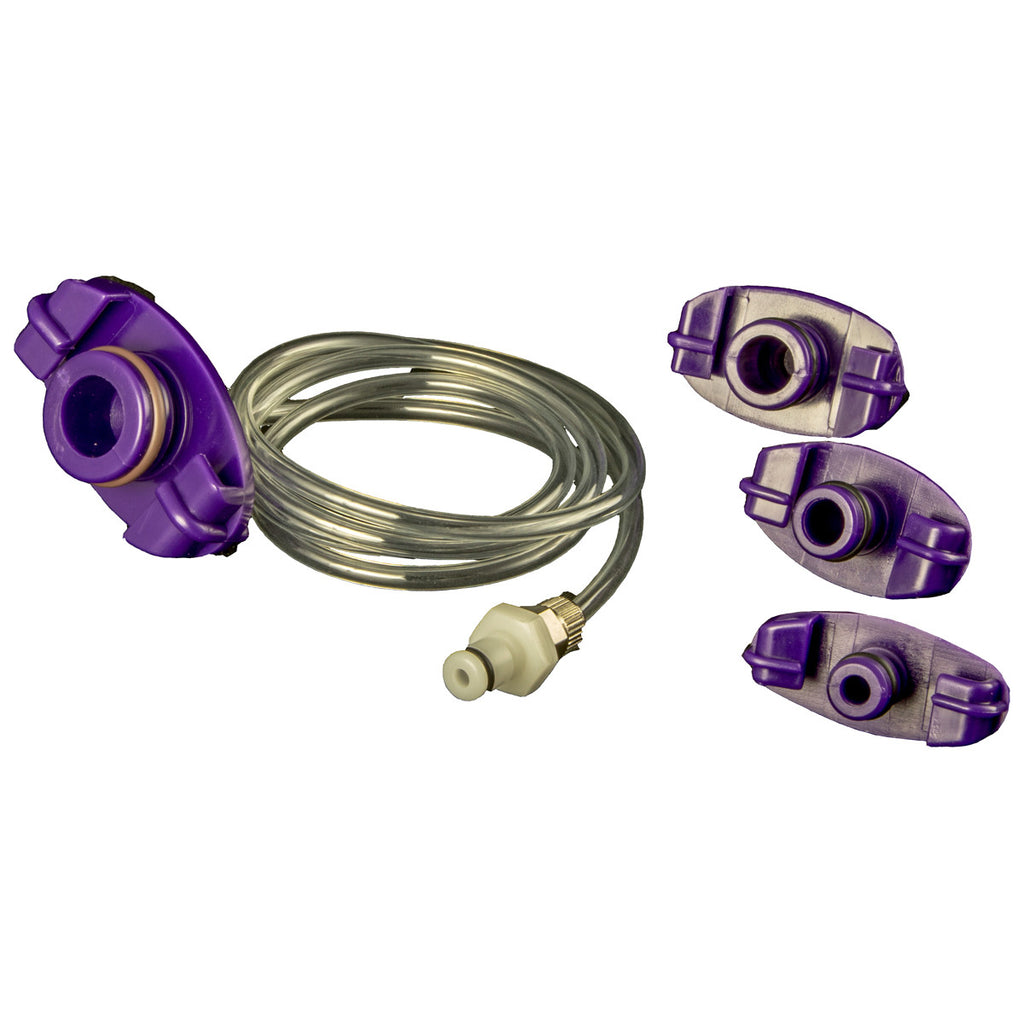

XP-Series Syringe Adapter

$ 29.80

The New XP-Series purple syringe adapters are specifically designed with an O-Ring seal to fit all Jensen Global air syringes.  It uses a 5/32” air line that press-fits to the head. Our XP-Series syringe adapters are available with either a black barb fitting (fits most dispensers) or a white QC fitting which fits our JGD500T, JGD400S, JGD350S, JGD150S, and JGD150STS dispensing controllers.
